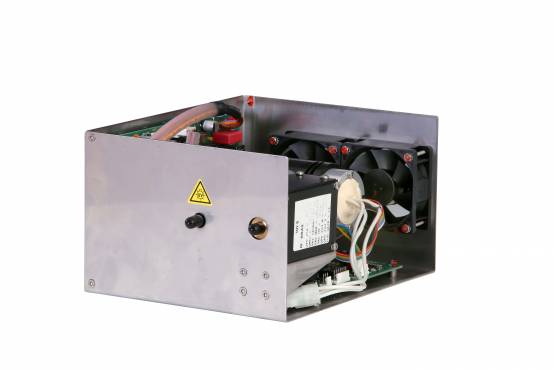

TOY18DAD 600 EX Four Channel UV Detector

4 channel 200-600

Four Channel version measures at four wavelengths simultaneously with possibility to see current scan.

Availability

Related variants

Categories
Manufacturer
Ecom
Part number
TOY12WEY

More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

The unit is supplied with AMY17 PCB board. It powers the lamps and control the unit. It has lot of new function including sampling higher speed.



Most important features of TOY18DAD EX units:

  • small dimensions
  • built-in lamp working hours counter
  • cell connection using optical cables
  • measuring at more wavelengths simultaneously
  • sophisticated diagnostic software



To the AMY17 board can be optionally connected:

  • Analog outputs board
  • LAN and USB board
  • Display with keyboard
  • Leakage sensor
Wavelength range 200-600 nm
Number of channels (Signals) 4
Number of CCD elements 256
Accuracy of adjustment ± 1 nm /±0.5 nm
Typical spectral half-width 10 nm
Drift (Test cell, 254nm) 2 x 10-3 AU/hr
Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Wetted materials PTFE; fused silica, stainless steel
Communication RS232; optionally USB and LAN
Power supply 24 -36 V DC
Power input 48 W
Dimensions W x H x D 164 x 112 x 197 mm (6.46 x 4.41 x 7.76 in)
Weight 2,0 kg (4.4 lb)
Optical cables yes
Filename Type
Info-TOY18DAD600_EX_detector-en.pdf pdf (146,21 KB)
