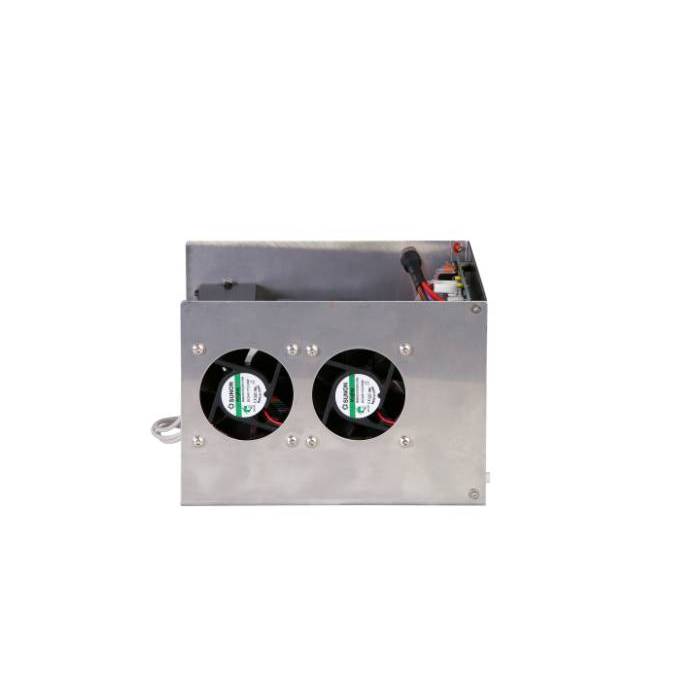

TOYDAD400 EX Scanning Detector

4 channel Scanning 200-400
Is OEM built-in UV diode array (DAD) detector working in range 200 – 400 nm. It measures absorbance at four wavelengths simultaneously or sends scan with speed of 5Hz.  SMA 905 connectors allow to use external cell connected with optical cables. It is suited for preparative and flash chromatography.
Availability
This product cannot be purchased.
Categories
Manufacturer
Ecom
Part number
TOY03WEX

More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.


Most important features of TOYDAD EX units:

  • small dimensions
  • built-in lamp working hours counter
  • cell connection using optical cables
  • measuring at more wavelengths simultaneously
  • sophisticated diagnostic software



Specifikation

TECHNICAL PARAMETERS:

Wavelength range 200 - 400 nm
Elements on CCD 128
Number of channels (Signals) 4
Scan
200 - 400 nm, 5 Hz,
step 1 nm
Typical spectral half-width 8 nm
Accuracy of adjustment / Reproducibility ± 1 nm /±0.5 nm
Noise level at test cell (254 nm, TC 0.75s) ± 5 x 10-5 AU
Drift at test cell (254 nm after 1 h) 1 x 10-3 AU/hr
Materials in contact with mobile phase PTFE; fused silica, stainless steel
Time constant (T63) 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Interface RS232
Power supply 24 -36 V DC
Power input 48 W
Dimensions (W x H x D) 164 x 112 x 197 mm (6.46 x 4.41 x 7.76 in)
Weight 2,0 kg (4.4 lb)

EXTERNAL CELLS AND UV RESISTANT OPTICAL CABLES FROM ECOM ASSORTMENT ARE OFFERED ACCORDING CUSTOMER NEEDS.
