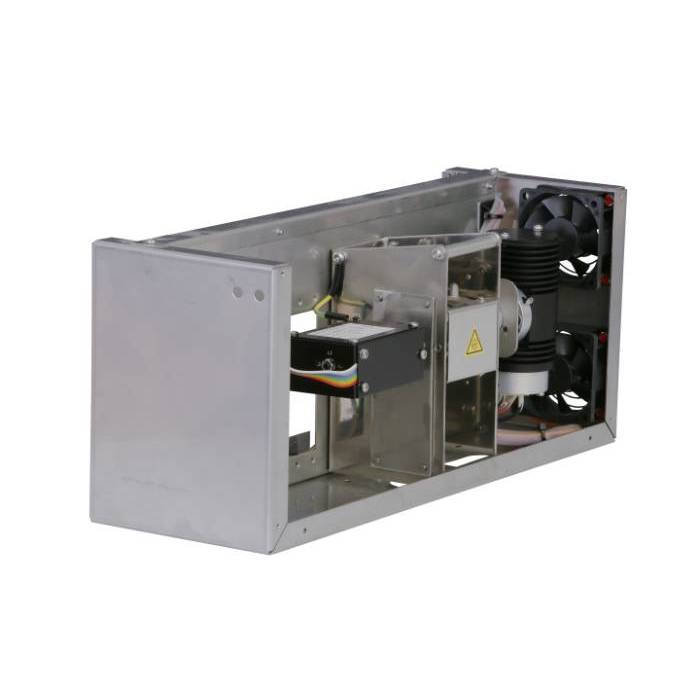

TOYDAD 600 Four Channel UV Detecto

4 channel 200-600

200 - 600 nm Four Channel  PDA detector  measures at four wavelengths simultaneously with possibility to see current scan.

Availability
This product cannot be purchased.
Categories
Manufacturer
Ecom
Part number
TOY1200X

More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

Most important features of TOYDAD detectors:
• small dimensions
built-in lamp working hours counter
easy replacement of flow cell
measuring at more wavelengths simultaneously
sophisticated diagnostic software



 PREPARATIVE CELL PLCC 15 (SUPPLIED WITH UNIT)

volume/optical path (adjustable) 45 μl / 0.3 mm; 55 μl / 1.4 mm; 70 μl / 2.4 mm
Cell connecting tubing with OD = 1/8", thread 1/4"-28
Wavelength range 200-600 nm
Number of channels (Signals) 4
Scan 200 - 600 nm ,informative
Number of CCD elements 256
Accuracy of adjustment ± 1 nm
Typical spectral half-width 8 nm
Reproducibility ±0.5 nm
Light source Deuterium lamp
Noise (Test cell, 254nm, TC 2s, 10 Hz) ± 5 x 10-5 AU
Drift (Test cell, 254nm) 1 x 10-3 AU/hr
Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Wetted materials FEP; fused silica, stainless steel
Communication RS232
Power supply 24 -36 V DC
Power input 48 W
Dimensions W x H x D 131 x 167 x 386 mm (5.15 x 6.57 x 15.20 in)
Weight 3.20 kg (7.06 lb)
Optical cables no
Filename Type
Info-TOYDAD600_detector-en.pdf pdf (166,93 KB)
