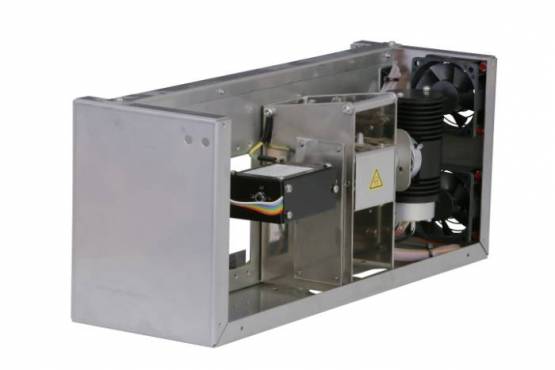

TOYDAD 600 Scaning UV Detector

Scanning 200-600

200 - 600 nm Scanning  PDA detector  measures at four wavelengths simultaneously or sends scan with speed 5 Hz which allows to create 3D picture.

Availability
This product cannot be purchased.
Categories
Manufacturer
Ecom
Part number
TOY1300X

More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

Most important features of TOYDAD detectors:
• small dimensions
built-in lamp working hours counter
easy replacement of flow cell
measuring at more wavelengths simultaneously
sophisticated diagnostic software




PREPARATIVE CELL PLCC 15 (SUPPLIED WITH UNIT)

volume/optical path (adjustable) 45 μl / 0.3 mm; 55 μl / 1.4 mm; 70 μl / 2.4 mm
Cell connecting tubing with OD = 1/8", thread 1/4"-28
Wavelength range 200-600 nm
Number of channels (Signals) 4
Scan 200 - 600 nm, 5 Hz, step 2 nm
Number of CCD elements 256
Accuracy of adjustment ± 1 nm
Typical spectral half-width 8 nm
Reproducibility ±0.5 nm
Light source Deuterium lamp
Noise (Test cell, 254nm, TC 2s, 10 Hz) ± 5 x 10-5 AU
Drift (Test cell, 254nm) 1 x 10-3 AU/hr
Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Wetted materials FEP; fused silica, stainless steel
Maximal flow rate 500 or 3 000 ml/min depending on the cell
Power supply 24 -36 V DC
Power input 48 W
Dimensions W x H x D 131 x 167 x 386 mm (5.15 x 6.57 x 15.20 in)
Weight 3.20 kg (7.06 lb)
Optical cables no
