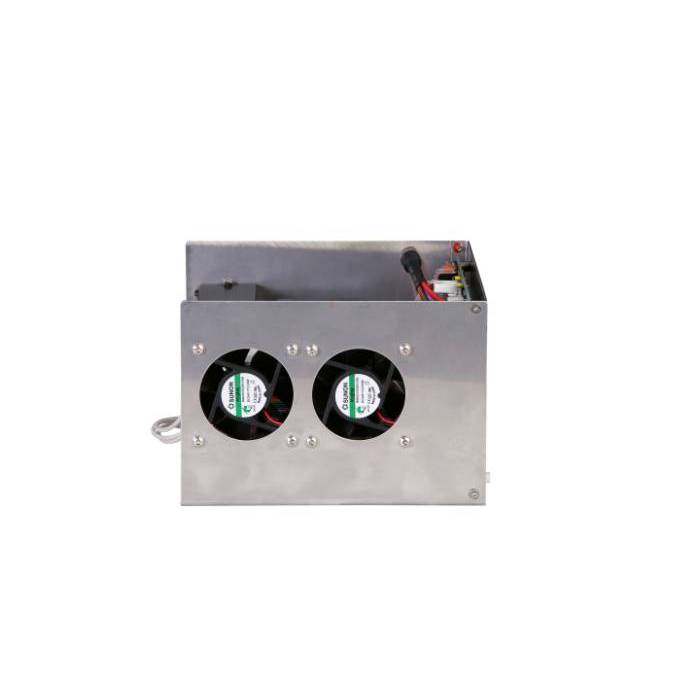

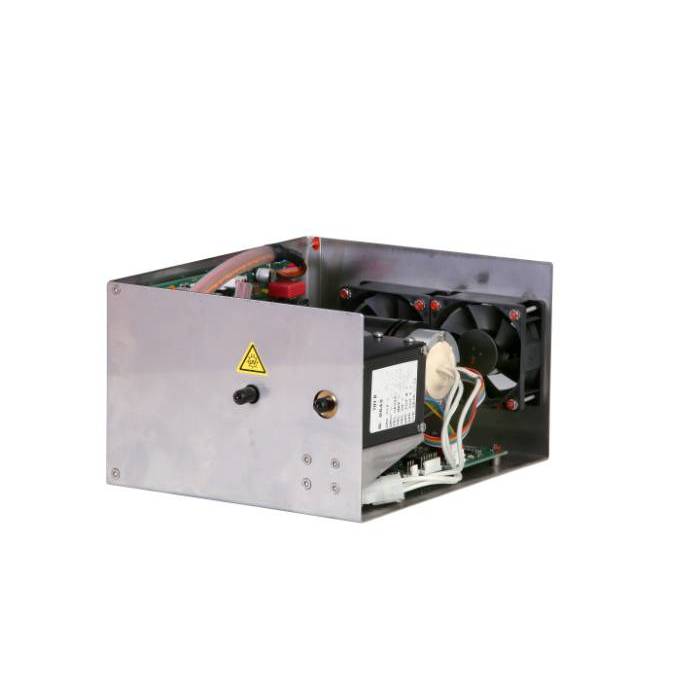

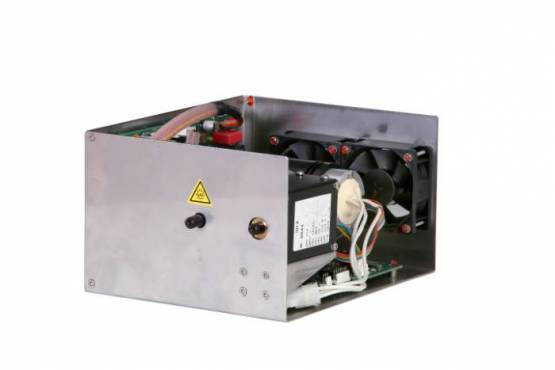

TOYDAD800 EX Two Channel Detector

2 channel 200-800
Is OEM built-in UV-VIS diode array (DAD) detector working in range 200 – 800 nm. It measures absorbance at two wavelengths simultaneously.  SMA 905 connectors allow to use external cell connected with optical cables. It is suited for preparative and flash chromatography.
Availability
This product cannot be purchased.
Manufacturer
ECOM spol. s r.o.
Part number
TOY31WEX

More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.


Most important features of TOYDAD EX units:

  • small dimensions
  • built-in lamp working hours counter
  • cell connection using optical cables
  • measuring at more wavelengths simultaneously
  • sophisticated diagnostic software



Specifikation

TECHNICAL PARAMETERS:

Wavelength range 200 - 800 nm
Elements on CCD 256
Number of channels (Signals) 2
Scan
Informative
200 – 800 nm
Typical spectral half-width 10 nm
Accuracy of adjustment / Reproducibility ± 1 nm /±0.5 nm
Noise level at test cell (254 nm, TC 0.75s) ± 5 x 10-5 AU
Drift at test cell (254 nm after 1 h) 1 x 10-3 AU/hr
Materials in contact with mobile phase PTFE; fused silica, stainless steel
Time constant (T63) 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Interface RS232
Power supply 24 -36 V DC
Power input 48 W
Dimensions (W x H x D) 164 x 112 x 197 mm (6.46 x 4.41 x 7.76 in)
Weight 2,0 kg (4.4 lb)

EXTERNAL CELLS AND UV RESISTANT OPTICAL CABLES FROM ECOM ASSORTMENT ARE OFFERED ACCORDING CUSTOMER NEEDS.
