TOYFIX Dual EX UV Detector
2 channel
200-600
FIX

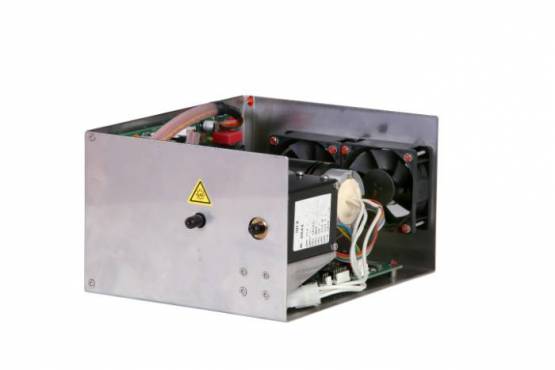

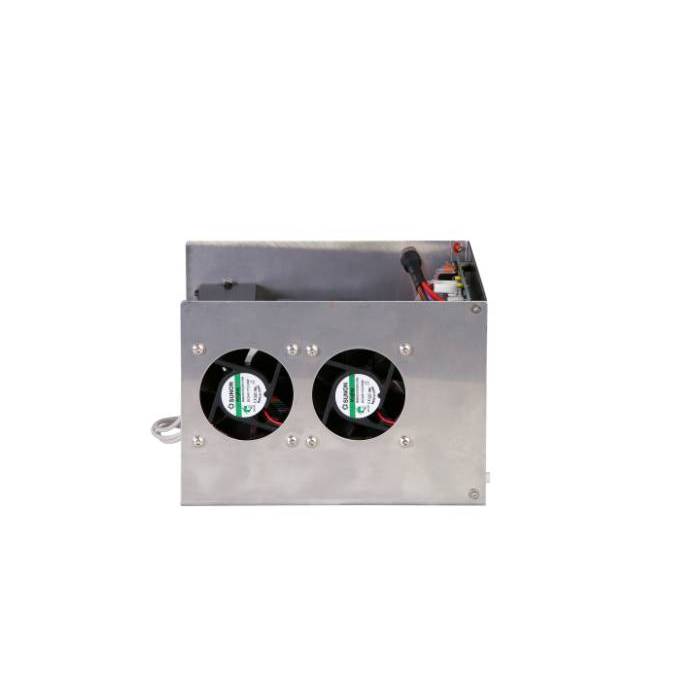

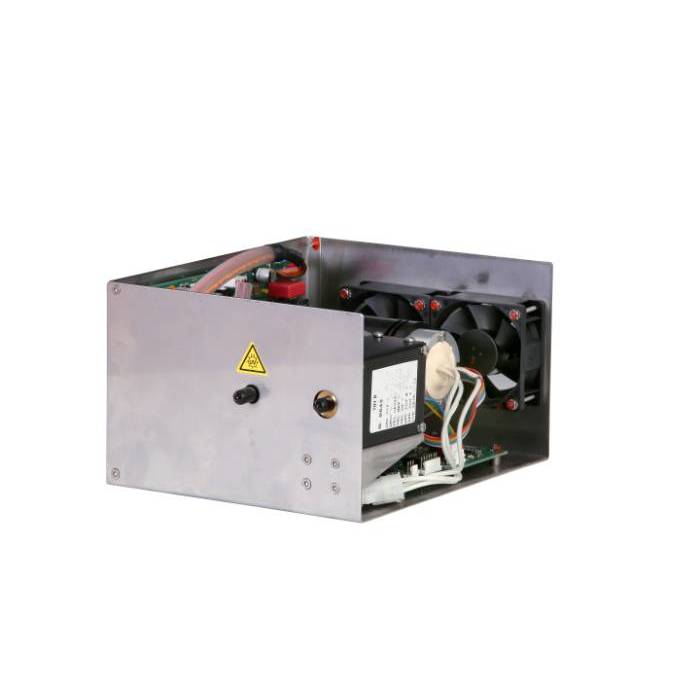

Is OEM built-in UV detector with SMA 905 connectors allowing to use external cell connected with optical cables. It is suited for preparative and flash chromatography with fix wavelengths in range 200 – 600 nm.
Categories
Manufacturer
ECOM spol. s r.o.
Part number
TOY22WEX
- Description
- Files to download 1
It is offered in the following versions:
Single UV detector version measure at one fix wavelength which is adjusted in production according to customer order in range of 200 – 600 nm.
Dual UV detector version measure at two fix wavelengths which are adjusted in production according to customer order in range of 200 – 600 nm.
Most important features of TOYFIX detectors:
- small dimensions
- built-in lamp working hours counter
- easy replacement of flow cell
- sophisticated diagnostic software
TECHNICAL PARAMETERS:
| Wavelength range | 200 - 600 nm |
| Elements on CCD | 256 |
| Number of channels (Signals) |
Two fix wavelengths in range of
200 – 600nm
|
| Typical spectral half-width | 8 nm |
| Accuracy of adjusted wavelength | ± 1 nm |
|
Noise level at test cell (254 nm, TC
0.75s)
|
± 5 x 10-5 AU |
| Drift at test cell (254 nm after 1 h) | 1 x 10-3 AU/hr |
|
Materials in contact with mobile
phase
|
PTFE; fused silica, stainless steel |
| Time constant (T63) | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Interface | RS232 |
| Power supply | 24 -36 V DC |
| Power input | 48 W |
| Dimensions (W x H x D) | 164 x 112 x 197 mm (6.46 x 4.41 x 7.76 in) |
| Weight | 2,0 kg (4.4 lb) |
EXTERNAL CELLS AND UV RESISTANT OPTICAL CABLES FROM ECOM ASSORTMENT ARE OFFERED ACCORDING CUSTOMER NEEDS.
| Filename | Type |
|---|---|
| Info-TOYFIX_EX_detector-en.pdf | pdf (187,99 KB) |
