UV Detector LCD 2070.1 analytical
Small unit measured at wavelength 254 nm
- Description
- Parameters

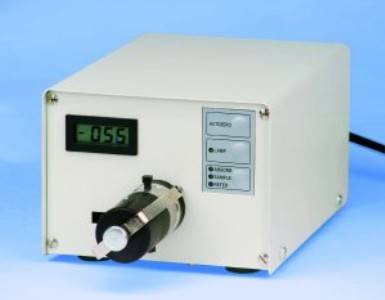

UV detector LCD 2070.1
is small simple unit for use in analytical liquid chromatography applications based on measurement of absorption of UV radiation of 254nm. The unit is easy for operating, reference and sample signal is available for detector diagnostics and lamp live reading.
The detector is equipped with two interference filters 254 nm to reduce the others spectral lines of mercury lamp.
Very interesting are the small dimensions of unit.
There is possible to use cell:
Analytical cell HPLC 08
Important notice: Output signal of the detector is directly proportional to the optical path of the cell. Since the optical paths of cells may be changed, noise and drift levels are referred to the optical path of 10 mm, corresponding to the AU definition.
HPLC 08 Standard measuring analytical cell supplied with the unit
| volume / optical path | 10 ul / 5 mm |
| External diameter of capillaries | 1,6mm (1/16") |
| Internal diameter of capillaries input/output | 0.2 / 0.5 mm |
| Light source | low pressure mercury lamp |
|---|---|
| Time constant | 1.0 sec. |
| Power supply | 230 V ± 10%, 50 Hz or 115/100 V± 10%, 50-60 Hz |
| Power input | 34 VA |
| Dimensions W x H x D | 153 x 112 x 210 mm |
| Weight | 3kg |
| Noise level at empty cell (254 nm, TC 1 s) | ± 2,5 x 10-5 AU |
| Drift at empty cell (254 nm after 1 h) | 5 x 10-4 AU/hr |
| Wavelength | 190 - 360 nm |
| Absorbance output | 1V/au |
