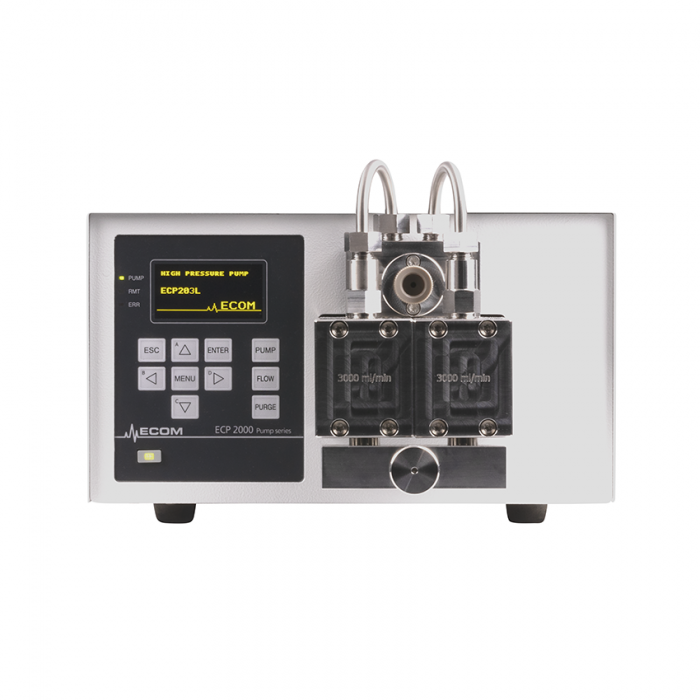

3000 ml/min ECP203L Preparative Pump
Preparative HPLC pump with a very high flow rate of up to 3000 ml/min at the output pressure of up to 5 MPa (725 psi).
Related variants
-60x60-2-0-0-ffffff.png)
- Description
- Parameters
- Files to download 2
Preparative HPLC pump with improved and outstanding parameters! A very high flow rate of up to 3000 ml/min at the output pressure of up to 5 MPa (725 psi).
The ECP203L preparative pump is a powerful, reliable, and cost-effective solution designed for preparative liquid chromatography applications requiring high flow rates and operating pressures. Thanks to its robust dual-piston design and advanced control capabilities, it is ideally suited to routine laboratory work, method development, pilot-scale purification, and production processes.
The pump features two ½-inch-diameter pistons that deliver flow rates of up to 3,000 ml/min while maintaining an output pressure of up to 5 MPa. Its durable construction ensures long-term operation, even under demanding conditions, making it ideal for continuous use in industrial and laboratory settings.
Key benefits of the ECP203L pump
• Flow rate of up to 3000 ml/min
• Output pressure of up to 5 MPa
• Dual-piston design with ½“ pistons
• High-pressure gradient capability with up to four synchronized pumps
• PC control via RS232
• Piston backwashing for buffered solvents
• Full compatibility with ECOMAC and Clarity software
• Free basic ECOMAC software
• Robust construction for long-term operation
• Suitable for laboratory, pilot-scale, and production applications
Applications
The ECP203L can be used for various preparative chromatography and process applications, including:
• Purification of pharmaceuticals and fine chemicals
• Isolation of natural products and plant extracts
• Peptide and oligonucleotide purification
• Process liquid transfer and dosing into chemical reactors
• Method development and scale-up studies
• General laboratory and pilot-plant applications
Smart control and software support
The ECP203L is fully supported by ECOMAC and Clarity software, providing convenient control, monitoring, diagnostics, and method management. The basic version of the ECOMAC software for controlling a single pump unit is supplied free of charge with every pump.
ECOMAC software
• User-friendly and intuitive operation
• Supports ECOM instruments with a communication interface
• Controls the device and collects data
• Multiple data export formats
• Service and diagnostic functions
| Flow rate | 1 – 3000 ml/min |
|---|---|
| Maximum operating pressure | 5 MPa up to 3000 ml/min |
| Flow rate setting | Increments of 1 ml/min |
| Repeatability of flow rate adjusting | ± 1 % |
| Accuracy of flow rate setting | ± 2 % |
| Wetted materials | stainless steel, PEEK, TefzelTM, ceramic, ruby, seals-GFP by default-or optionlally UHMW_PE |
| Communication | RS232,Ethernet (LAN),USB,Remote digital I/O |
| Power supply | 100-240V VAC |
| Power input | 500 VA |
| Dimensions W x H x D | 276 x 153 x 620 mm (10.87 x 6.14 x 24.40 in) |
| Weight | 30 kg (66 lb) |
| Pressure Compensation Learning | yes |
| Filename | Type |
|---|---|
| Info-ECP203L_pump-en | pdf (202 KB) |
| Info-Piston_Seal_Materials-en | pdf (134,34 KB) |
