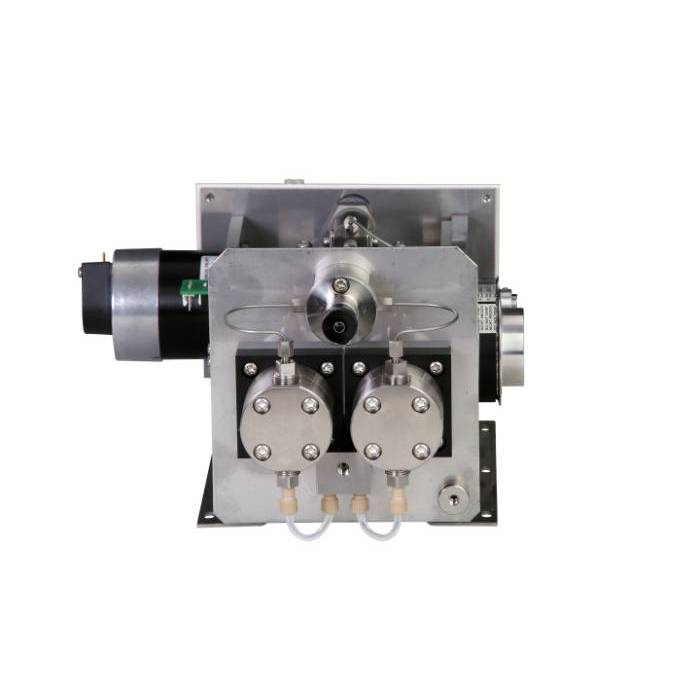

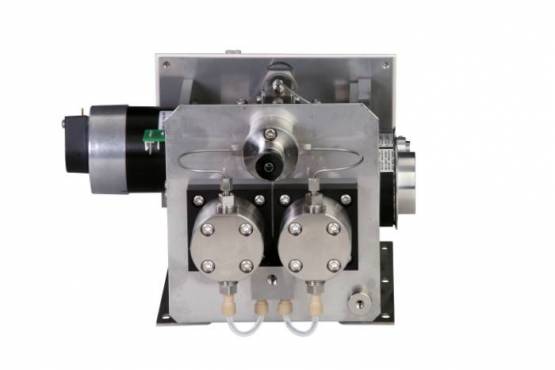

ECP2050 OEM Preparative Pump (50 ml/min; 30MPa)
OEM built-in pump with flow rate up to 50ml/min and 30 MPa (4351 PSI).
- Description
- Parameters
ECP2050 OEM has flow-rate range from 0.001 to 50 ml/min. Maximum operating pressure is 30 MPa (4351 PSI).
It has two pistons connected in parallel, with diameter of 3/8”. It is suited for preparative and flash applications in liquid chromatography but also for solvent pressurizing by samples extractions, etc. Beneficiary is also a very stable run even at low flow rates. Also available in configurations made of certified bio-inert materials.
This pump is designed as OEM / built-in unit.
There is a possibility to use this pump even at high pressure gradient mode, where are two, three or four units controlled from PC using RS232.
Control board is mounted at the unit back side therefore the installation is very easy. Only connect power voltage and RS232 and pump is ready to work.
When working with buffered solvents, it is possible to use pistons back washing.
Pump is supported with software ECOMAC and Clarity.
ECP2050 OEM PUMP is equipped with pressure sensor.
| Flow rate | 0.001 – 50 ml/min |
|---|---|
| Maximum operating pressure | 30 MPa (4351 PSI) |
| Flow rate setting | 0.001 ml/min steps |
| Repeatability of flow rate adjusting | ± 1 % |
| Accuracy of flow rate setting | ± 2 % |
| Wetted materials | stainless steel, PEEK, ceramic, seals |
| Communication | RS232 |
| Power supply | 24 – 36 V DC |
| Power input | 100 W |
| Dimensions W x H x D | 212 x 153 x 338 mm |
| Weight | 7 kg |
| Output capillary outer diameter | 1/16” |
| Upper pressure limit (MPa) | 0.1 – 30 (5800PSI) |
| Pressure Compensation Learning | yes |
