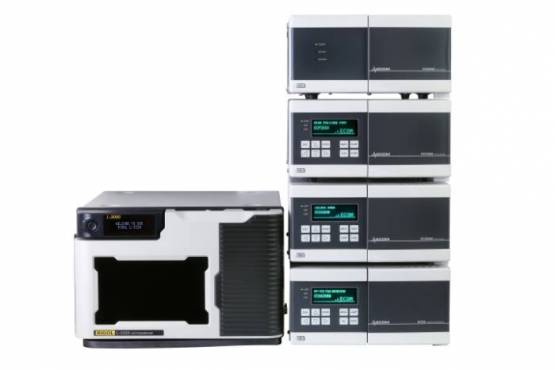

ECS05 Gradient Analytical System

8 channel Scanning 200-800 10ml/min 40MPa
Highly effective HPLC system containing a UV-VIS detector, a column oven, an analytical pump, a gradient box, and an autosampler.
Availability
Categories
Manufacturer
ECOM spol. s r.o.
Part number
ASA0500X

The detector with eight channels in the range of 200-800 nm and a very low noise level also offers high-speed scanning up to 100 Hz. Communication of units is through RS232 or Ethernet(LAN). An additional PC A/D converter card is not required for this system. The system contains an autosampler and Clarity software. All units are supported in Clarity software from installation.

A wireless mouse and keyboard set (P/N: EPC-0028), a PC (P/N: EPC-0026), and a computer monitor (P/N: EPC-0027) can be purchased with the system.

Main parts

ECDA2800 UV-VIS PDA DETECTOR
Analytical Diode Array Detector measures at eight wavelengths simultaneously or performs a full scan with a speed of up to 100 Hz. 3D support in Clarity SW. Noise level ±5 x 10-6 AU. Four analog outputs. Two special mathematical channels are available. AD 05 analytical cell is included.

ECO2080 COLUMN OVEN WITH HEATING AND COOLING
This column oven allows precise temperature stabilization in the range of 0-80°C. A big compartment room can accommodate up to 3 columns with lengths up to 25 cm. Peltier technology offers the possibility of heating and cooling independently from room temperature.

ECP2010 ANALYTICAL HPLC PUMP
This isocratic pump works with Gradient Box ECB2004B as a quaternary gradient pump. The flow rate range is 0.02-10.00 ml/min and the pressure limit is 40 MPa. Unit software includes a new learning algorithm for pulsation suppression and many testing and diagnostic functions.

ECB2004B GRADIENT BOX WITH DEGASSER
The box is suited for handling liquids in ECOM gradient systems. It accommodates a container for solvent bottles, a built-in high-efficiency vacuum degasser, and a four-way gradient valve. Up to four solvent lines may be degassed simultaneously by one unit. A four-way gradient valve is controlled from the pump ECP2010.

AUTOSAMPLER L-3320
Automatic autosampler ensures excellent accuracy and linearity of sample injection. Very low sample residue contamination, μl pick-up mode achieves zero sample loss. Automated self-checking. The Rheodyne valve ensures reliable operation.

CLARITY CHROMATOGRAPHY SOFTWARE
This system is fully controlled by Clarity Chromatography software, which is also a part of delivery. Clarity software complies with CFR21GLP requirements.


SYSTEM CONTAINS

Pcs Description P/N
1 ECDA2800 Analytical UV-VIS PDA Detector ANW0000X
1 ECB2004B Gradient box with degasser ABA0000X
1 ECP2010 Analytical HPLC pump ACA0000X
1 ECO2080 Column oven with heating and cooling AOA0000X
1 Autosampler L3320 for 2x48 vials ARA03320
1 Clarity – Station for 1 instrument AP000C50
1 Clarity module for HPLC control AP000A24
1 Clarity SW module for AS control AP000A26
1 Module for PDA data Clarity (SW) AP000A29
1 Accessories for analyt. system series 2000 ASA00180
1 Accessories ECOM for AS Rigol L3320/L3320H ARA00180
Note: Column and computer are not included. PC system has to be equipped for handling 3 serial RS232 or 1 Ethernet port at least. Check also Clarity software requirements.
