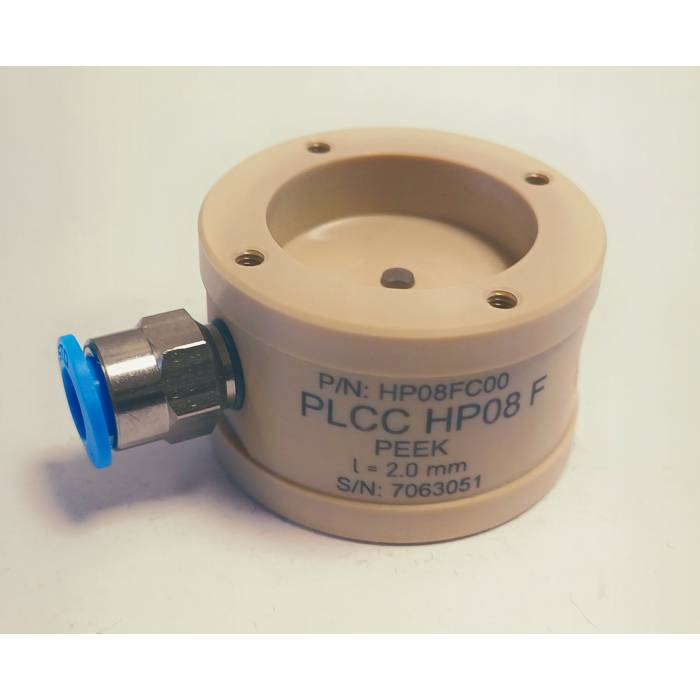

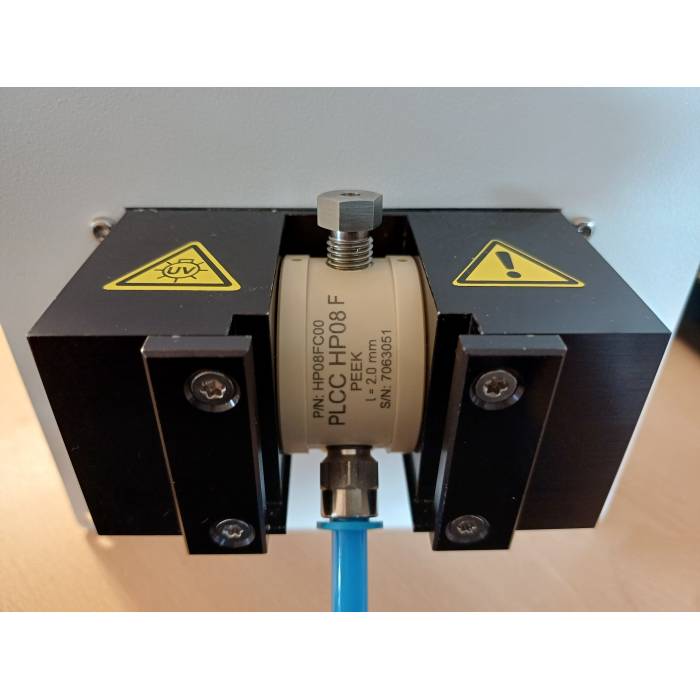

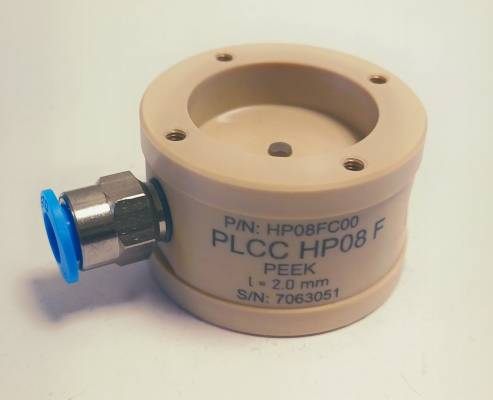

Flowcells for Low-temperature Applications PEEK

Preparative Flowcells for Low-temperature Applications have a unique design with an optical length of 0.1-2 mm. They are designed for flow cells for low-temperature applications. These cells were designed for industrial or pilot-scale chromatography processes involving liquids at low temperatures. Thanks to their integrated blowing-out feature, which dries out optical parts, they can overcome condensation that forms during low-temperature separation processes. The connection is via tubing with OD 1/16" or 1/8" and thread  UNF 10-32 or 5/16"-24. The internal volume of the preparative cell is 7 µl. The maximum flow rate is 50, 500 or 3000 ml/min depending on cell type.The new series of preparative HP Flow-Cells from PEEK material are intended for ECOM HPLC systems with a UV-VIS detector and with a continuous flow of mobile phase. HP cells are offered with different optical paths, excelent pressure resistance up to 30MPa / 4351 PSI, maximum flow rate of mobile phase, and with the option of choosing the appropriate fitting and outer diameter (OD) of tubes and capillaries.
These cells are intended for ECOM OEM detectors TOY18/20DAD I, U; , and TOY18/20DAD V.

Advantages of the new Flowcells for Low-temperature Applications  design
• High pressure resistance – up to 30MPa / 4351 PSI, and flow rate up to 50, 500 or 3000 ml/min depending on cell type.
• Extended cell life – thanks to the new cell window design
• Increased temperature resistance range – now from -50 °C up to 100 °C
• Increased stability of the optical path – even under high-pressure conditions
• More easy exchangeable cells – according to preferred sensitivity/application
