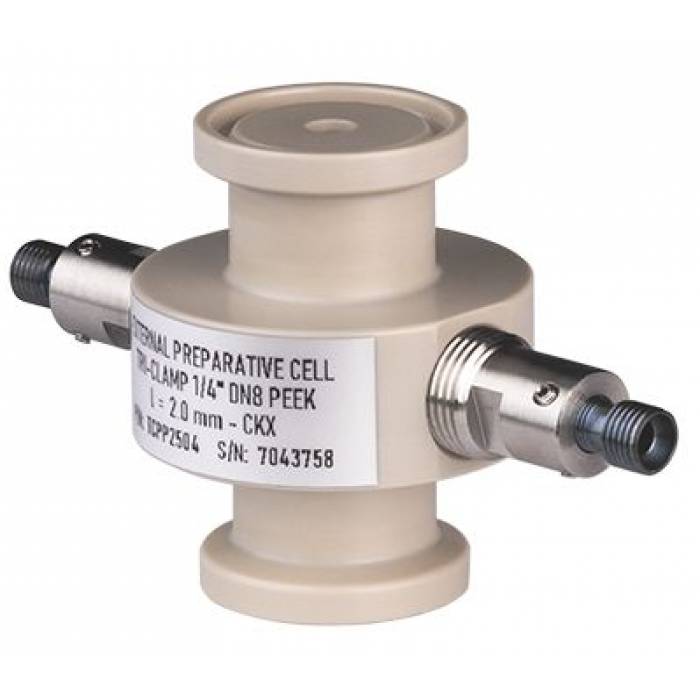

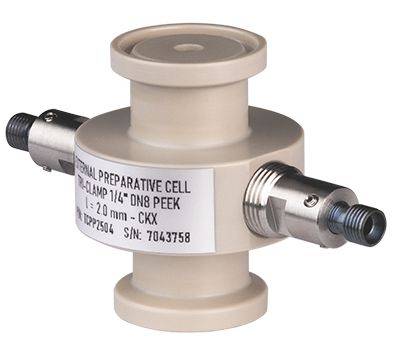

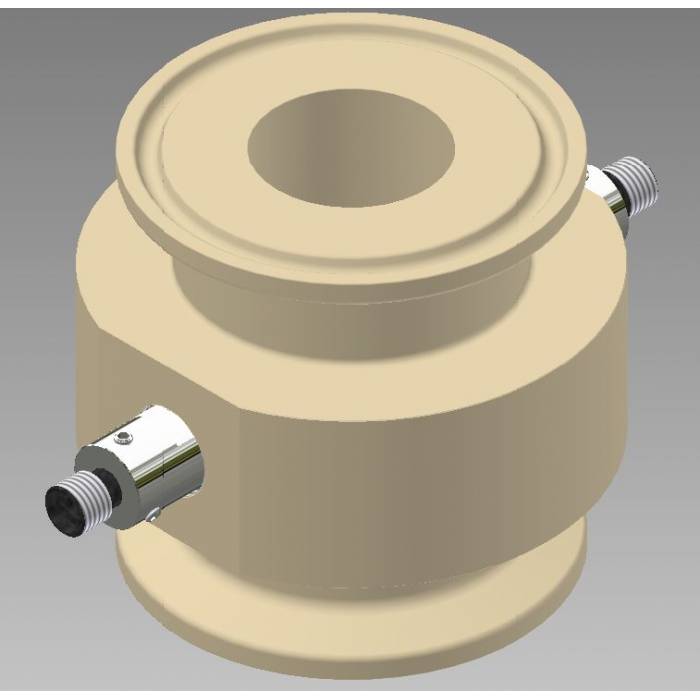

PEEK TriClamp Flow-Cells
PEEK TriClamp Cells are used in industrial/pilot–scale process chromatography. They can be easily connected to the piping system.
Related variants
| Image | PN | Name | Flange OD [mm] | Size ASME BPE | Tube ID [mm] | Optical path length [mm] | Max Pressure [MPa/PSI] | Wetted Material | L [mm] | Request quote |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
PN
TC2503P0
|
Name
TriClamp Flow-cell PEEK Size 3/16" ID 3.20 mm
|

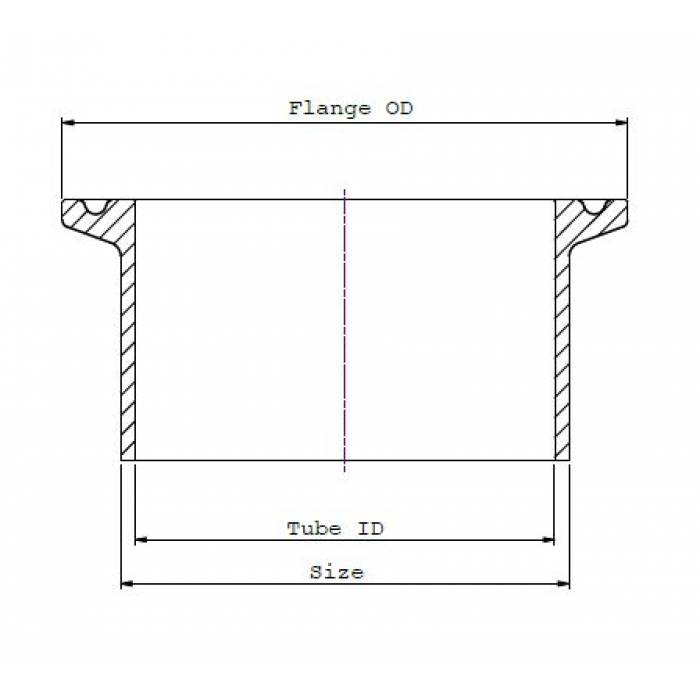

Flange OD [mm]
25.4
|
Size ASME BPE
3/16"
|
Tube ID [mm]
3.20
|
Optical path length [mm]
0.1–2
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
PEEK; Sapphire
|

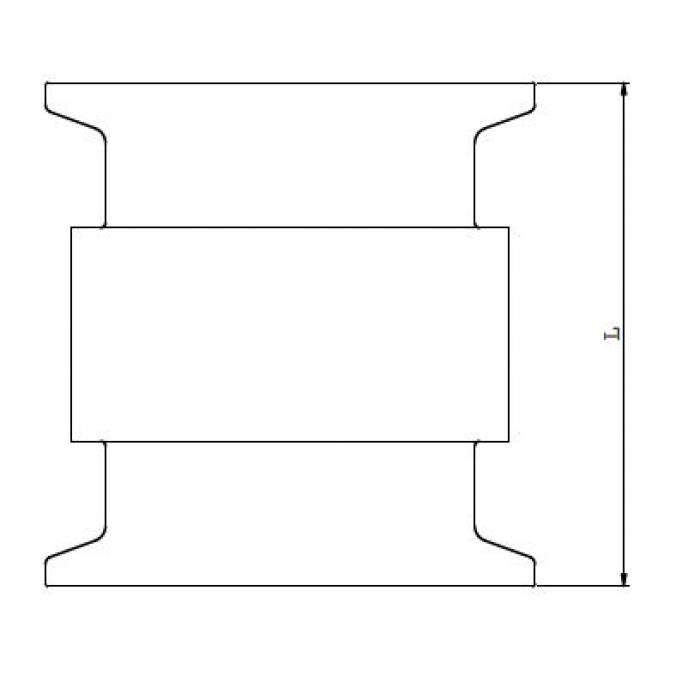

L [mm]
45
|
Actions
|
|
|
PN
TCPP2504
|
Name
TriClamp Flow-cell PEEK Size 1/4" ID 4.57 mm
|
Flange OD [mm]
25.4
|
Size ASME BPE
1/4"
|
Tube ID [mm]
4.57
|
Optical path length [mm]
0.1–4
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
PEEK; Sapphire
|
L [mm]
45
|
Actions
|
|
|
PN
TCPP2507
|
Name
TriClamp Flow-cell PEEK Size 3/8" ID 7.74 mm
|
Flange OD [mm]
25.4
|
Size ASME BPE
3/8"
|
Tube ID [mm]
7.74
|
Optical path length [mm]
0.1–4
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
PEEK; Sapphire
|
L [mm]
45
|
Actions
|
|
|
PN
TCPP2509
|
Name
TriClamp Flow-cell PEEK Size 1/2" ID 9.40 mm
|
Flange OD [mm]
25.4
|
Size ASME BPE
1/2"
|
Tube ID [mm]
9.40
|
Optical path length [mm]
0.1–5
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
PEEK; Sapphire
|
L [mm]
45
|
Actions
|
|
|
PN
TCPP2515
|
Name
TriClamp Flow-cell PEEK Size 3/4" ID 15.75 mm
|
Flange OD [mm]
25.4
|
Size ASME BPE
3/4"
|
Tube ID [mm]
15.75
|
Optical path length [mm]
0.1–5
|
Max Pressure [MPa/PSI]
30/4351
|
Wetted Material
PEEK; Sapphire
|
L [mm]
45
|
Actions
|
|
|
PN
TCP50220
|
Name
TriClamp Flow-cell PEEK Size 1" ID 22.10 mm
|
Flange OD [mm]
50.5
|
Size ASME BPE
1"
|
Tube ID [mm]
22.10
|
Optical path length [mm]
0.1–10
|
Max Pressure [MPa/PSI]
20/2900
|
Wetted Material
PEEK; Sapphire
|
L [mm]
52
|
Actions
|
- Description
- Files to download 1

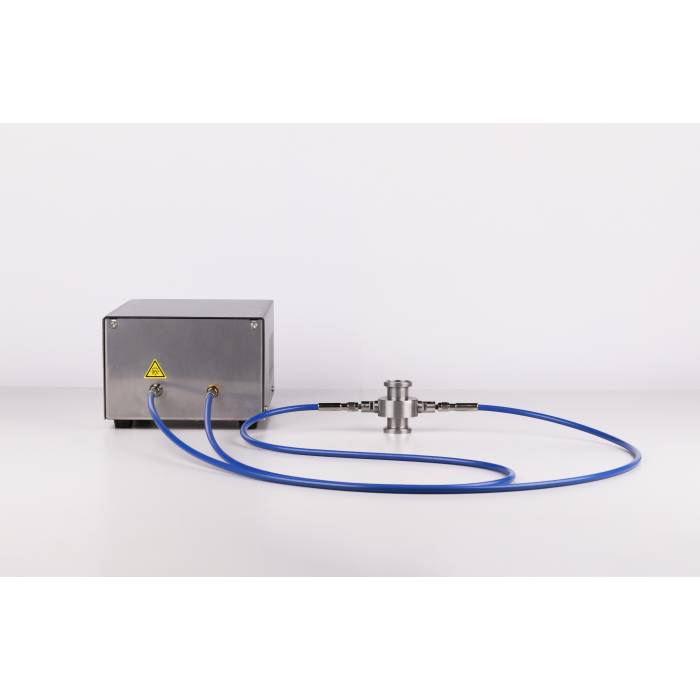

TriClamp Cells are used for analyzing and monitoring the absorbance of liquids passing through the cell, where UV light is led from the detector and back using SMA 905 connector and optical–fiber cables.
Pressure and temperature resistance: The cell is designed to withstand a maximum operating pressure of 30 MPa (4351 PSI) or 20 MPa (2900 PSI) according cell size. Also, it can withstand high operating temperatures of up to +160 °C (320 °F).
Optical path length: Different optical path lengths are available: from 0.05 mm to 2; 4; 5 and 10 mm according cell size.
Quality of the surface: The internal flow-through hole of the cell is characterized by its high-quality processed surface. Its internal surface quality value is less than Ra 0.4 µm.
Wetted Materials: are a PEEK body and sapphire window.
Features and Benefits
• Resistant to high pressures 30 MPa (4351 PSI) or 20 MPa (2900 PSI) and high temperatures (up to +160 °C (320 °F).)
• Elimination of dead volume
• Good rinsing without cross-contamination of the sample
• Wide range of optical path length options
• Compatible with ECOM external TOY detectors
• Inspection Certificate EN 3.1
• Flow cells of our production are designed following the ASME-BPE (Bioprocessing Equipment) standard. This globally recognized standard ensures that equipment meets the stringent hygiene and performance criteria required in industries such as biotechnology, pharmaceuticals, and food processing. Following these requirements, our flow cells provide exceptional cleanliness, reliability, and compliance with critical bioprocessing specifications.
| Filename | Type |
|---|---|
| Info-Cells_Tri_clamp_en-05.pdf | pdf (1,1 MB) |
