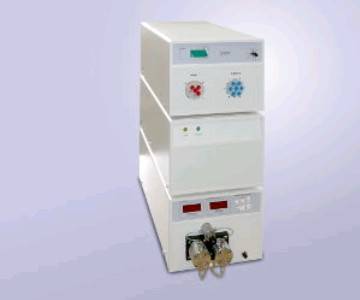

SE07 Isocratic Preparative System
For routine preparative and flash applications at four wavelengths with automatically sampling and fractions collecting
- Description
This system is suited for preparative and flash chromatographyby constant flow rate of mobile phase (0.1 - 100 ml/min). Sample injecting is provided automatically using three-way valve on the input of system. The fractions are collected by means of six-way valve on the system output. These valves are located in the SPIDER MIXING UNIT as follow:
Chromatographic software ECOMAC controls the system and collects data. For fractions collecting are possibilities as follow:
- control by means of time table
- control based on peak detection at chosen signal
Whichever ECOM UV detector can be used in the system (Sapphire, Opal or Flash 06 DADSingle/Dual see Detectors overview).
Computer is not include but can be delivered separately.
System contains
| Pcs | Description | P/N |
| 1 | ALPHA 100 Plus Isocratic Pump | PH000003 |
| 1 | Flash 06S DAD 600 Detektor | 2050S00000 |
| 1 | SPIDER C06 Fraction collector and injector | VS000000 |
| 1 | Box for Bottles MF1 | ZA000000 |
| 2 | Mobil phase reservoir LCT 02, 1L | 56940000 |
| 3 | SS Mobile Phase Filter 20um, 1/8" | JR367008-20 |
| 1 | ECOMAC Chromatographic software | AF000000 |
| 2 | Crossed serial cable 9pin RS 232 | EKAB-024 |
| 1 | MultiCOM 1x USB to 6x RS232 Converter | MC01 |
| 1 | Panda 30HID Input unit | SA040000 |
| 1 | Accessories for preparative system | SE020101 |
