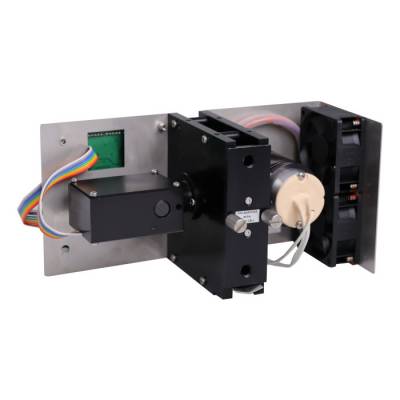

TOY18FIX L Single UV Detector

200-600 FIX

Single UV detector version measure at one fix wavelength which is adjusted in ECOM production according to customer order in range of 200 – 600 nm.


Related variants

Part number

 The unit is supplied with AMY17 PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in) . It powers the lamps and control the unit.

Most important features of TOY18DAD L detectors:

•small dimensions

•built-in lamp working hours counter

•easy replacement of flow cell

•measuring at more wavelengths simultaneously

•sophisticated diagnostic software


To the AMY17 board can be optionally connected:

•Analog outputs board

•LAN and USB board

•Display with keyboard

•Leakage sensor

Wavelength range 200-600 nm
Number of channels (Signals) 1
Scan 200 - 600 nm,informative
Number of CCD elements 256
Accuracy of adjustment ± 1 nm
Typical spectral half-width 10 nm
Reproducibility ±0.5 nm
Light source Deuterium lamp
Noise (Test cell, 254nm, TC 2s, 10 Hz) ± 5 x 10-5 AU
Drift (Test cell, 254nm) 1 x 10-3 AU/h
Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Maximal flow rate 500 or 3 000 ml/min depending on the cell
Communication RS232; optionally USB and LAN
Power supply 24 -36 V DC
Power input 48 W
Dimensions W x H x D 220 x 120 x 110 mm (8.67 x 4.72 x 4.33 in)
Weight 1.90 kg (4.19 lb)
Materials in contact with mobile phase FEP; fused silica, stainless steel. PEEK
Optical cables no
