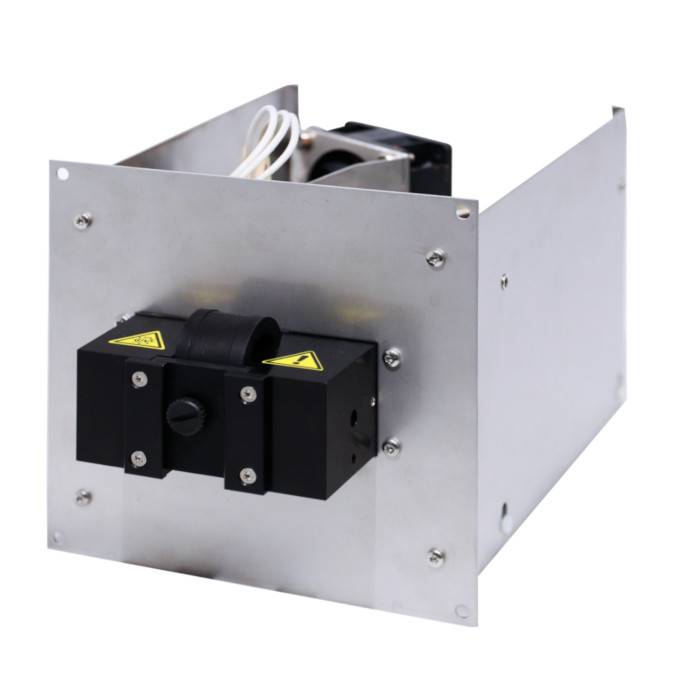

TOY18FIX U Single UV Detector

200-600 FIX

Single UV detector version measure at one fix wavelength which is adjusted in production according to customer order in range of 200 – 600 nm.

Availability
Manufacturer
ECOM spol. s r.o.
Part number
TOYU210Y

 The unit is supplied with AMY17 PCB board. It powers the lamps and control the unit. It has lot of new function including sampling higher speed.

Most important features of TOY18FIX detectors:

•small dimensions

•built-in lamp working hours counter

•easy replacement of flow cell

•sophisticated diagnostic software

Number of channels (Signals) One fix wavelength in range of 200 – 600nm
Number of CCD elements 256
Accuracy of adjustment ± 1 nm
Typical spectral half-width 10 nm
Reproducibility ±0.5 nm
Light source Deuterium lamp
Noise (Test cell, 254nm, TC 2s, 10 Hz) ± 5 x 10-5 AU
Drift (Test cell, 254nm) 1 x 10-3 AU/h
Time constant 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Wetted materials FEP, fused silica, stainless steel, PEEK
Communication RS232; optionally USB and LAN
Power supply 24 -36 V DC
Power input 48 W
Dimensions W x H x D 220 x 120 x 110 mm (8.67 x 4.72 x 4.33 in)
Weight 1.90 kg (4.19 lb)
Optical cables no
