TOYDAD U Detector Series

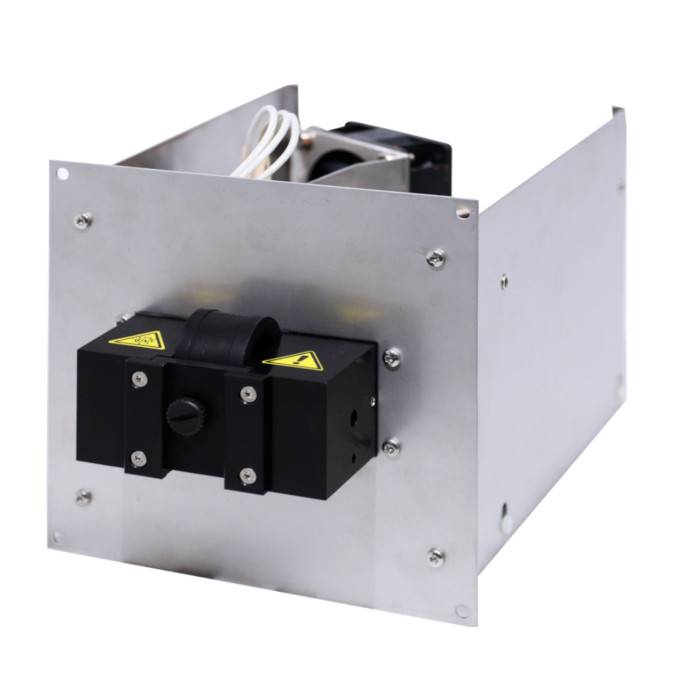

TOYDAD U Detectors are produced in many versions according wavelengths range, number of measuring channels and scanning possibility. They use Basic PFC cells without a bracket.
Related variants
| Image | PN | Type | Wavelength range [nm] | Number of Channels | Scanning | Lamps | CCD elements | Request quote |
|---|---|---|---|---|---|---|---|---|
|
|
PN
TOYU0101
|
Type
TOY18DAD400 U Two Channel UV Detector
|
Wavelength range [nm]
200-400
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
128
|
Actions
|
|
|
PN
TOYU0201
|
Type
TOY18DAD400 U Four channel UV Detector
|
Wavelength range [nm]
200-400
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
128
|
Actions
|
|
|
PN
TOYU0301
|
Type
TOY18DAD400 U Scanning UV Detector
|
Wavelength range [nm]
200-400
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2
|
CCD elements
128
|
Actions
|
|
|
PN
TOYU1100
|
Type
TOY18DAD600 U Two Channel UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOYU1200
|
Type
TOY18DAD600 U Four Channel UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOYU1300
|
Type
TOY18DAD600 U Scanning UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOYU3101
|
Type
TOY18DAD800 U Two channel UV Detector
|
Wavelength range [nm]
200-800
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
TOYU3201
|
Type
TOY18DAD800 U Four channel UV Detector
|
Wavelength range [nm]
200-800
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
TOYU3300
|
Type
TOY18DAD800 U Scanning channel UV Detector
|
Wavelength range [nm]
200-800
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
T20U3100
|
Type
TOY20DAD800 U Two channel UV Detector
|
Wavelength range [nm]
190-800
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
T20U3200
|
Type
TOY20DAD800 U Four channel UV Detector
|
Wavelength range [nm]
190-800
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
T20U3300
|
Type
TOY20DAD800 U Scanning UV Detector
|
Wavelength range [nm]
190-800
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
TOYU2201
|
Type
TOY18FIX U Dual UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
2 Fix wavelengths
|
Scanning
No
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOYU2101
|
Type
TOY18FIX U Single UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
1 Fix wavelength
|
Scanning
No
|
Lamps
D2
|
CCD elements
256
|
Actions
|
- Description
- Parameters
- Files to download 5
Four wavelength ranges (200 - 400; 200 - 600; 200 - 800 and 190 - 800 nm) are offered in versions which measure on two or four wavelengths with informative scan on query or in Scanning version which measures at four wavelengths simultaneously or sends a scan at a speed up to 20 Hz which allows the creation of a 3D picture. More wavelengths or scans are used in liquid chromatography to verify the purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

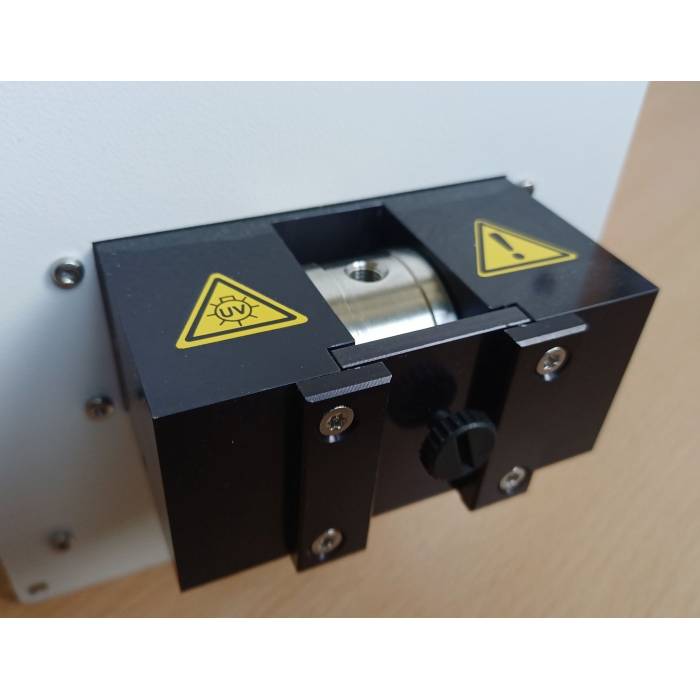

TOYDAD U Detectors are delivered with a PFC cell with optical pathlength of 0.1 mm. But according customer request are available cells with optical path length from 0.05 - 5 mm.

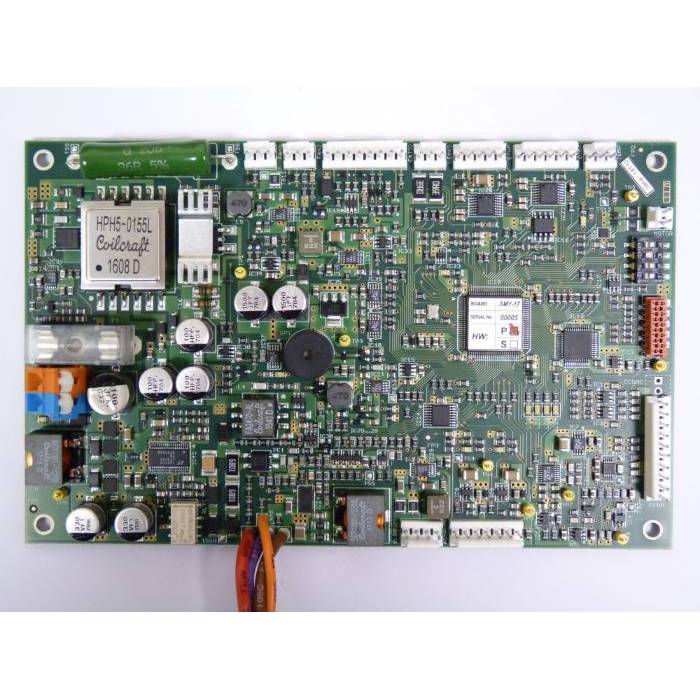

The unit is supplied with an AMY17 PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in). It powers the lamps and controls the unit. Thanks to new board features it allows sending a scan of spectra with high resolution and speeds up to 20 Hz depending on the baud rate.

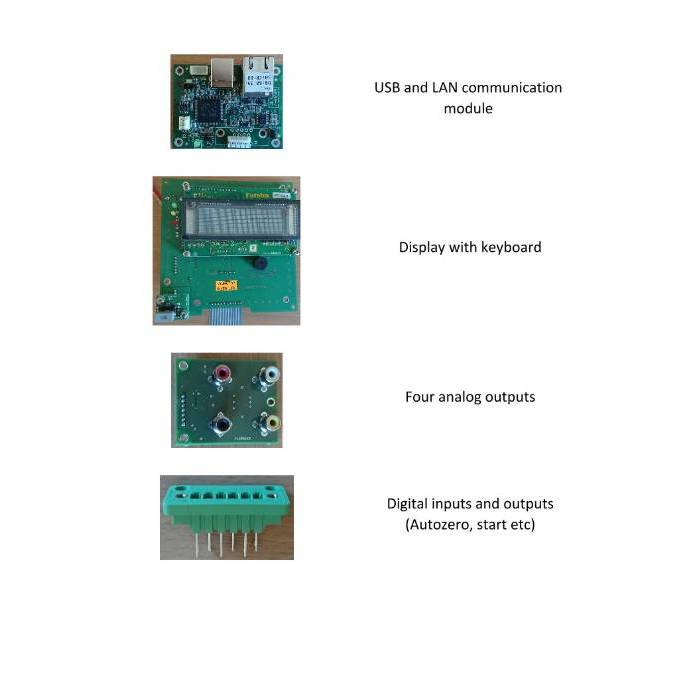

AMY17 board allows to have optional extension modules (for additional cost):
• Analog outputs board
• LAN and USB board
• Display with keyboard
• Leakage sensor
The most important features of TOYDAD U Detectors:
• small dimensions
• built-in lamp working hours counter
• easy replacement of flow cell
• measuring at more wavelengths simultaneously
• sophisticated diagnostic software
| Accuracy of adjustment | ± 1 nm |
|---|---|
| Typical spectral half-width | 10 nm |
| Reproducibility | ±0.5 nm |
| Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 5 x 10-6 AU |
| Drift (Test cell, 254nm) | 2 x 10-3 AU/hr |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Maximal flow rate | 500 or 3 000 ml/min depending on the cell |
| Communication | RS232; optionally USB and LAN |
| Power supply | 24 -36 V DC |
| Power input | 20W |
| Materials in contact with mobile phase | FEP; fused silica, stainless steel. PEEK |
| Dimensions W x H x D | 182 x 59 x 67 mm (7.17 x 2.32 x 2.64 in) |
| Weight | 0.7 kg (1.54 lb) |
| Filename | Type |
|---|---|
| Info-TOY18FIX_U_detector-en-00.pdf | pdf (156,32 KB) |
| Info-TOY18DAD400U_detector-en-00.pdf | pdf (161,86 KB) |
| Info-TOY18DAD600U_detector-en-00.pdf | pdf (162,59 KB) |
| Info-TOY18DAD800U_detector-en-00.pdf | pdf (162,01 KB) |
| Info-TOY20DAD800U_detector-en-01.pdf | pdf (162,89 KB) |
Related products

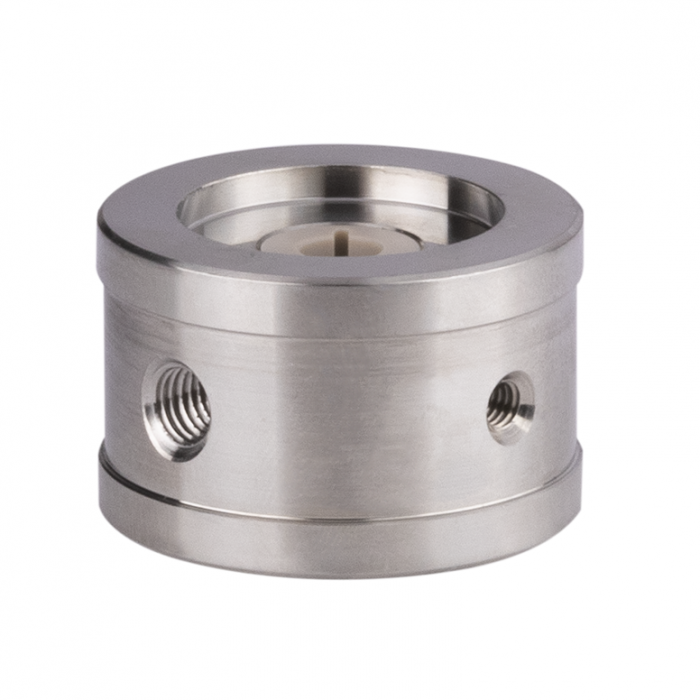

PFC-Basic Series Preparative Cells, Stainless Stee..
PFC Stainless Steel cells are suited for TOY and BABY detectors. They are in three versions for 1/16"; 1/8"and 3/16" tubing.

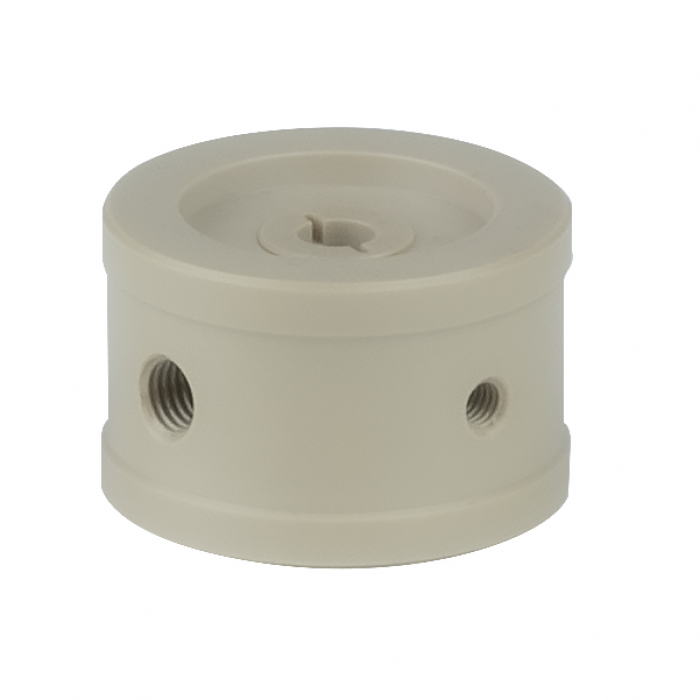

PFC-Basic Series Preparative Cells, PEEK
PFC PEEK cells are suited for TOY and BABY detectors. They are in three versions for 1/16"; 1/8"and 3/16" tubing.
High pressure flow-cells PEEK
Deuterium lamp for TOYDAD-L + TOY14 + TOY18
For detectors TOYDAD-L + TOY 14 + T0Y 18
Halogen lamp with cable and connector
For Flash DAD and TOYDAD detectors up to 800nm and for detectors ECD2800 and ECDA2800.
