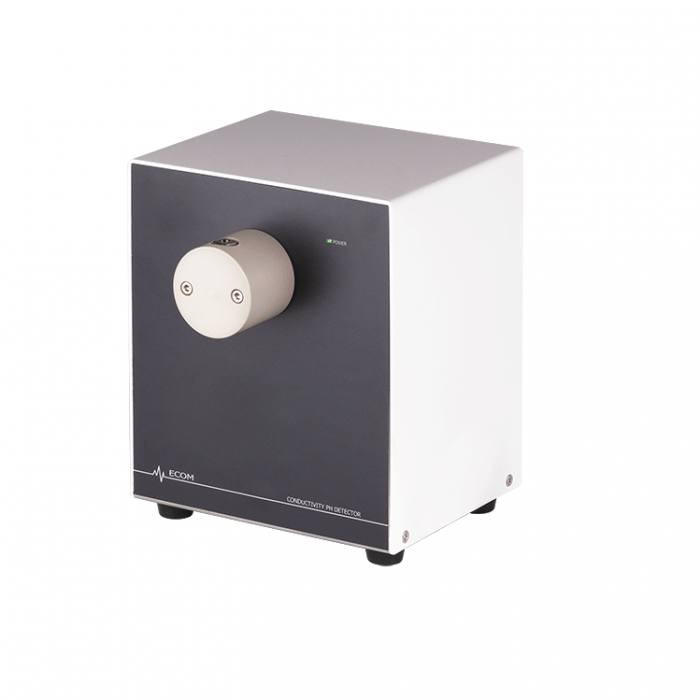

ECDM2100 Conductivity and pH Monitors
ECDM 2100 are conductivity and pH monitors, used for preparative and flash chromatography
| Image | PN | Name | Thread | Tube OD | Request quote |
|---|---|---|---|---|---|
|
|
PN
CDPH16XX
|
Name
Conductivity and pH Monitor-Without pH cell and sensor, 1/16
|
Thread
UNF 10-32
|
Tube OD
1/16“
|
Actions
|
|
|
PN
CDPH18XX
|
Name
Conductivity and pH Monitor-Without pH cell and sensor, 1/8
|
Thread
UNF ¼-28“
|
Tube OD
1/8“
|
Actions
|
|
|
PN
CDPHS16X
|
Name
Conductivity and pH Monitor-Set with pH cell and sensor, 1/16
|
Thread
UNF 10-32
|
Tube OD
1/16“
|
Actions
|
|
|
PN
CDPHS18X
|
Name
Conductivity and pH Monitor -Set with pH cell and sensor,1/8
|
Thread
UNF ¼-28“
|
Tube OD
1/8“
|
Actions
|
- Description
- Parameters
- Files to download 1
ECDM 2100 are conductivity and pH monitors suited for preparative and flash chromatography. Thanks to the unique ECOM design of the conductivity cell, it radically improves chromatography process monitoring.
The monitor cell had been developed for high-pressure applications, which means it can be used in CaptureSMB applications. These applications utilize a twin-column periodic countercurrent (PCC) process used for the continuous purification of monoclonal antibodies.
The unit is controlled by a printed board, which measures the conductivity of liquid passing through both the cell and the pH value.
Main features and benefits
• High-pressure cell up to 17 MPa (for 1/16” version)
• Simple conductivity calibration
• Compact size
• Powered by 12 – 24 V DC
• Sophisticated diagnostic software
| Conductivity Monitoring | 0.01 – 300.0 mS/cm |
|---|---|
| Operating pressure | 0 – 17 MPa (0 – 2465.6 psi; 0 – 170.0 bar) |
| Communication | RS232 |
| Ethernet (LAN) | |
| USB | |
| Flow rate | Conductivity monitor-0.01 – 200 mL/min |
| pH reading ranges | 0.0-14.0 pH |
| Wetted materials | Titanium and PEEK (conductivity monitor) |
| Communication | RS232,Ethernet (LAN),USB |
| Power supply | 12 - 24 V DC |
| Power input | 2.5 W |
| Cell connecting | Tubing with OD 1/16″, thread UNF 10-32 , tubing with OD 1/8″, thread UNF 1/4-28″ |
| Dimensions W x H x D | 140 x 168 x 165 mm (5.51” x 6.61” x 6.46”) |
| Weight | 1.31 kg (2.89 lb) |
| Filename | Type |
|---|---|
| Info-ECDM2100_monitor-en | pdf (240,46 KB) |
Accessories
pH Flow Cell PEEK
PH Cells PEEK, used for ECOM Conductivity and pH monitors.
| 1 Piece | €2.42 |
| 2 and more pieces | €0.00 |
