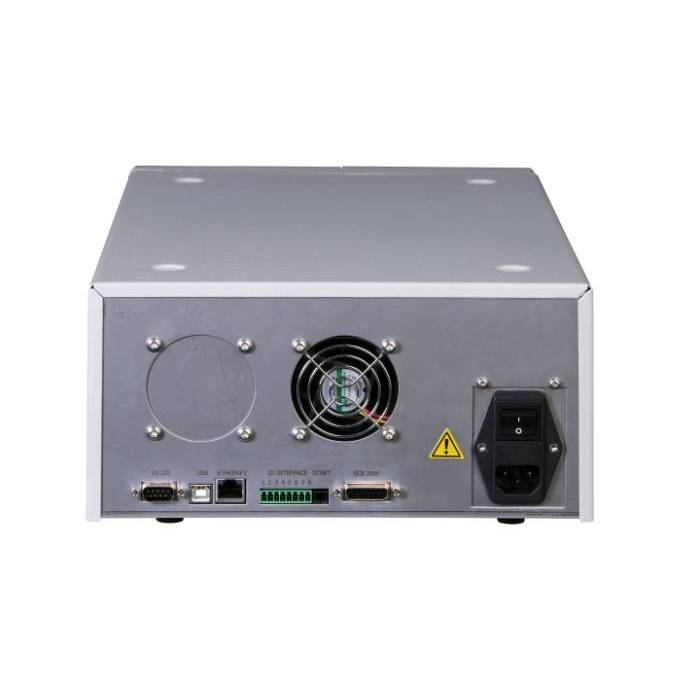

ECP2050 Preparative Pump
Preparative HPLC pump with a flow-rate range of up to 50 ml/min.
- Description
- Parameters
- Files to download 4
This pump works as an isocratic pump and together with Gradient Box also as a gradient pump.
ECB2007 (ECB2007PC) Gradient Box is equipped with a four-way gradient mixing valve and must be ordered together with the pump. Also available in configurations made of certified bio-inert materials.
These pumps are suited for preparative applications in liquid chromatography. These are designed with main and auxiliary pump heads connected in parallel with a piston diameter of 3/8”. This sophisticated unit allows achieving a precise low-pressure gradient, i.e. gradual changes of solvent composition by mixing up to four liquids at the pump’s entry. It is also possible to predefine the percentage of the composition when using the pump in isocratic mode. The gradient profile can be defined from the computer or manually using a display and keypad. There are many improvements that make this pump more reliable, including a new learning algorithm for pulsation suppression; leakage sensor, etc.
When necessary, it is possible to use back washing of the pistons (e.g. when using buffered mobile phase).
The pump is supported by ECOMAC and Clarity software.
All pumps are delivered with GFP (PTFE) seals as default, optimal recommended seals are UHMW-PE seals (ask for more information).
This pump is equipped with the Pressure Compensation Learning algorithm. Thanks to this smart adaptive process, the pump regulates the rotation speed of the camshaft and measures its impact on pressure pulsation to minimize the output pulsation as much as possible. The algorithm, due to its adaptive capacity, is applicable for many combinations of pump working conditions (solvents, columns, etc.).
Flow rate | 0.1 – 50 ml/min |
---|---|
Maximum operating pressure | 30 MPa (4351 PSI) |
Flow rate setting | 0.1 ml/min steps |
Repeatability of flow rate adjusting | ± 0.5 % |
Accuracy of flow rate setting | ± 2 % |
Wetted materials | stainless steel, PEEK, TefzelTM, PE, ceramic, seals |
Communication | RS232,Ethernet (LAN),USB |
Power supply | 100-240V 50/60Hz 100VA |
Dimensions W x H x D | 280 x 135 x 498 mm (11.02 x 5.12 x 18.23 in) |
Weight | 12 kg (26,5 lb) |
Output capillary outer diameter | 1/16” |
Upper pressure limit (MPa) | 0.1 – 30 (4351PSI) |
Precision of pressure measurement | ± 2 % |
Supported Gradient Box | ECB2007, ECB2007PC |
Pressure Compensation Learning | yes |
Filename | Type |
---|---|
Manual-ECP2050-en-05.pdf | pdf (1,79 MB) |
Manual-ECP2050-cz-05.pdf | pdf (1,84 MB) |
Info-Piston_Seal_Materials-en-01.pdf | pdf (134,34 KB) |
Info-ECP2050_2200_2300_pump-en-06.pdf.pdf | pdf (137,7 KB) |
