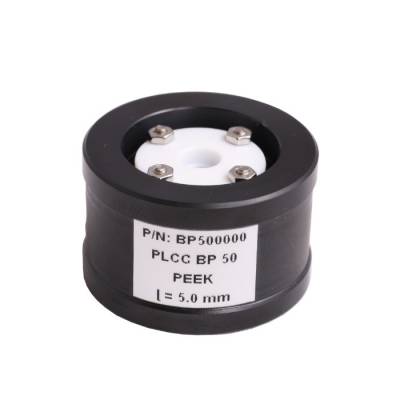

Preparative Cell PLCC BP50 Black PEEK
l=5 mm; tubing with OD 1/16"and thread UNF10-32
For detectors Flash, TOY18DAD and TOY18FIX, BABY18DAD, BABY18FIX.
Manufacturer
ECOM spol. s r.o.
Part number
BP500000
- Description
- Parameters
Preparative cell PLCC BP20 BLACK PEEK has a unique design with an optical length of 5 mm. It is designed for preparative or flash applications and it is possible to connect it using tubing with OD 1/16" and thread UNF10-32. Maximum flow rate is 500 ml/min.
If you are looking for a different cells parameters and materials, see our website or contact us. We are keen to design cell according your needs.
Wetted materials | Black PEEK, quartz, FEP |
---|---|
Body material | Black PEEK |
Maximal flow rate | 500 ml/min |
Connecting thread | UNF10-32 |
Maximum operating pressure | 2 MPa (290 psi) |
