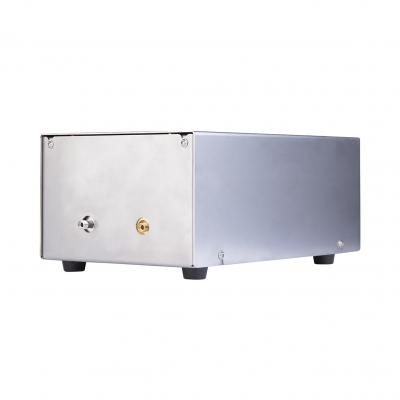

TOYDAD EXR Detector Series ( RS232 )
TOYDAD EXR Detectors are produced in many versions according wavelengths range, number of measuring channels and scanning possibility. They are used in applications where the flow cell has to be installed out of the detector. The external cells is connected by optical cables.
Related variants
| Image | PN | Type | Wavelength range [nm] | Number of Channels | Scanning | Lamps | CCD elements | Request quote |
|---|---|---|---|---|---|---|---|---|
|
|
PN
TOY01ER1
|
Type
TOY18DAD400 EXR Two Channel UV Detector
|
Wavelength range [nm]
200-400
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
128
|
Actions
|
|
|
PN
TOY02ER1
|
Type
TOY18DAD400 EXR Four channel UV Detector
|
Wavelength range [nm]
200-400
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
128
|
Actions
|
|
|
PN
TOY03ER1
|
Type
TOY18DAD400 EXR Scanning UV Detector
|
Wavelength range [nm]
200-400
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2
|
CCD elements
128
|
Actions
|
|
|
PN
TOY11ER1
|
Type
TOY18DAD600 EXR Two Channel UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOY12ER1
|
Type
TOY18DAD600 EXR Four Channel UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOY13ER1
|
Type
TOY18DAD600 EXR Scanning UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOY31ER1
|
Type
TOY18DAD800 EXR Two channel UV Detector
|
Wavelength range [nm]
200-800
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
TOY32ER1
|
Type
TOY18DAD800 EXR Four channel UV Detector
|
Wavelength range [nm]
200-800
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
TOY33ER1
|
Type
TOY18DAD800 EXR Scanning channel UV Detector
|
Wavelength range [nm]
200-800
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
T2031ER1
|
Type
TOY20DAD800 EXR Two channel UV Detector
|
Wavelength range [nm]
190-800
|
Number of Channels
2
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
T2032ER1
|
Type
TOY20DAD800 EXR Four channel UV Detector
|
Wavelength range [nm]
190-800
|
Number of Channels
4
|
Scanning
Informative
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
T2033ER1
|
Type
TOY20DAD800 EXR Scanning UV Detector
|
Wavelength range [nm]
190-800
|
Number of Channels
4
|
Scanning
Full 20Hz
|
Lamps
D2+Halogen
|
CCD elements
256
|
Actions
|
|
|
PN
TOY22ER1
|
Type
TOY18FIX EXR Dual UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
2 Fix wavelengths
|
Scanning
No
|
Lamps
D2
|
CCD elements
256
|
Actions
|
|
|
PN
TOY21ER1
|
Type
TOY18FIX EXR Single UV Detector
|
Wavelength range [nm]
200-600
|
Number of Channels
1 Fix wavelength
|
Scanning
No
|
Lamps
D2
|
CCD elements
256
|
Actions
|
- Description
- Parameters
- Files to download 5
Four wavelength ranges (200 - 400; 200 - 600; 200 - 800 and 190 - 800 nm) are offered in versions which measure on two or four wavelengths with informative scan on query or in Scanning version which measures at four wavelengths simultaneously or sends a scan at a speed up to 20 Hz which allows the creation of a 3D picture. More wavelengths or scans are used in liquid chromatography to verify the purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

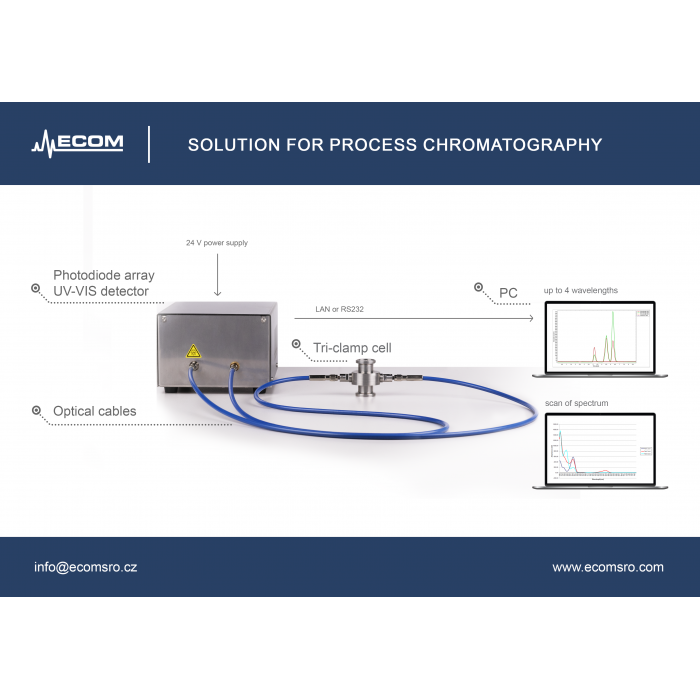

TOYDAD EXR Detectors can be connected to any external cell using optical cables equipped with SMA 905 connectprs.

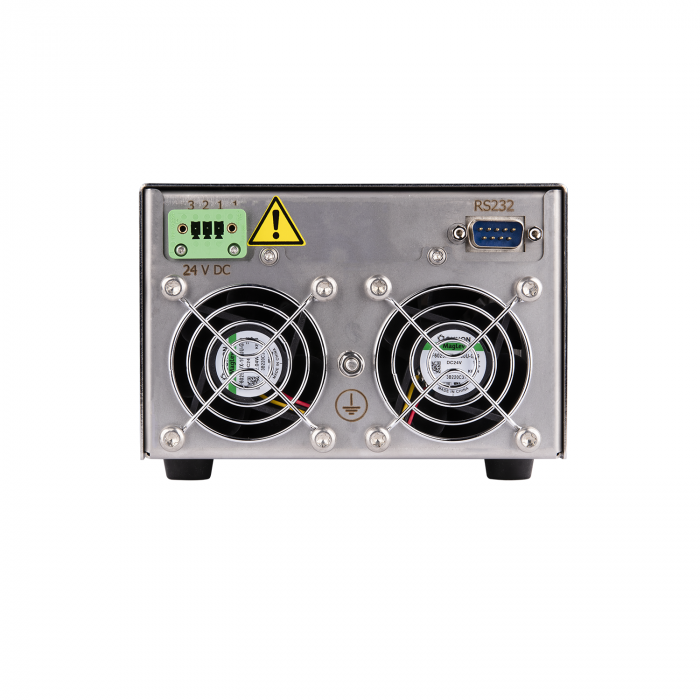

The unit is supplied with an AMY17 PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in). It powers the lamps and controls the unit. Thanks to new board features it allows sending a scan of spectra with high resolution and speeds up to 20 Hz depending on the baud rate.
The most important features of TOYDAD EXR Detectors:
• communication using RS232
• built-in lamp working hours counter
• easy flow cell connection
• measuring at more wavelengths simultaneously
• sophisticated diagnostic software
| Communication | RS232 |
|---|---|
| Accuracy of adjustment | ± 1 nm |
| Typical spectral half-width | 10 nm |
| Reproducibility | ±0.5 nm |
| Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 5 x 10-6 AU |
| Drift (Test cell, 254nm) | 2 x 10-3 AU/hr |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Maximal flow rate | 500 or 3 000 ml/min depending on the cell |
| Communication | RS232 |
| Power supply | 24 -36 V DC |
| Power input | 20W |
| Materials in contact with mobile phase | FEP; fused silica, stainless steel. PEEK |
| Optical cables | yes |
| Dimensions W x H x D | 182 x 59 x 67 mm (7.17 x 2.32 x 2.64 in) |
| Weight | 0.7 kg (1.54 lb) |
| Filename | Type |
|---|---|
| Info-TOY20DAD800_EXR_detector-en-01.pdf | pdf (879,15 KB) |
| Info-TOY18DAD400_EXR_detector-en-02.pdf | pdf (879,23 KB) |
| Info-TOY18DAD600_EXR_detector-en-02.pdf | pdf (876,95 KB) |
| Info-TOY18DAD800_EXR_detector-en-04.pdf | pdf (879,09 KB) |
| Info-Detectors_TOY18DAD_EXR_FIX-en-00.pdf | pdf (440,19 KB) |
